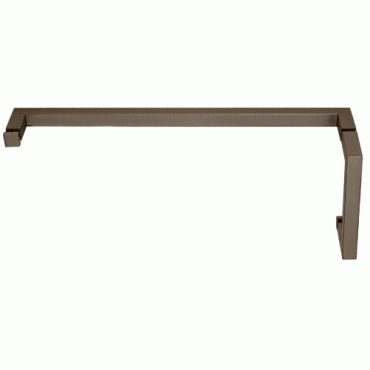

S618ORB Oil Rubbed Bronze Combo 6" Square Tubular Pull Handle 18" Towel Bar - SQ6X180RB Series

Part of the BB Hardware "SQ Style" Square Line of Accessories Featuring the Same Mitered Corners as Our Handles and Towel Bars. BBHardware "SQ Style" Pull Handle/Towel Bar Combination Sets are for glass mounting on shower doors. Each set consists of one towel bar and one pull handle. Made of square tubing.

• Available in Several Finishes

• Made of 3/4" (19 mm) Brass Tubing
• Several Sizes Available
• Use Monolithic Tempered Glass
• Handle :    6" (152 mm)

• Towel Bar:    18" (457 mm)
• Projection From Surface:    2-1/2" (63.5 mm)

SPECIFICATIONS:

Material: 3/4" (19 mm) Brass Tubing

Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)

Hole Diameter Required: 1/2" (12 mm)

Center-to-Center Hole Spacing:

6" Pull Handle = 6" (152 mm)

8" Pull Handle = 8" (203 mm)

12" Pull Handle = 12" (305 mm)

18" Towel Bar = 18" (457 mm)

Custom finishes are available on request.

SQ6X18CH Series
