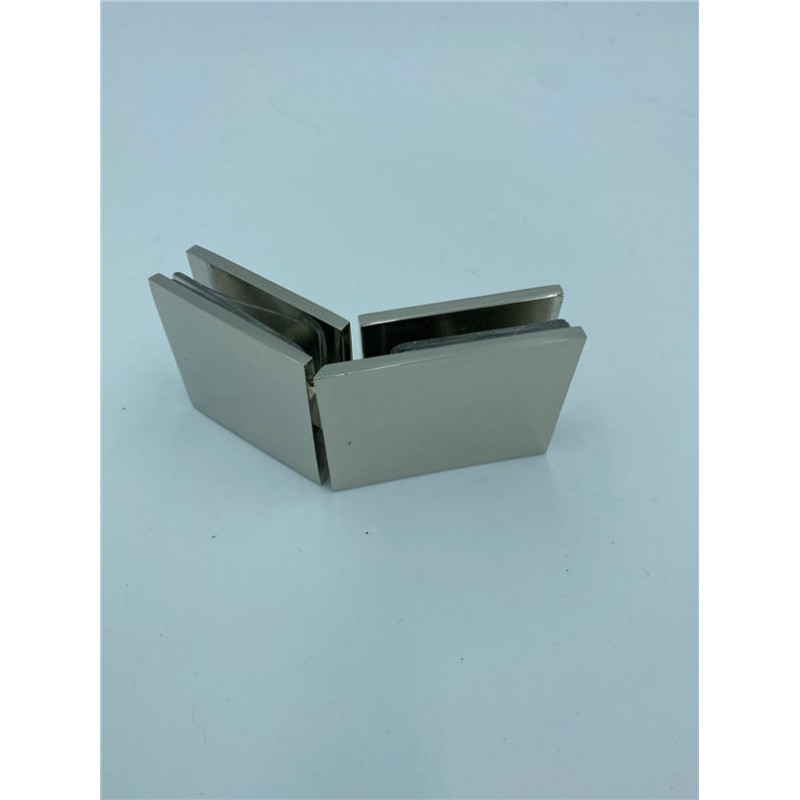

C335BN Brushed Nickel Square Style 135 Degree Moveable Transom Glass to Glass Clamp - SGC335BN Series

Moveable Transom Glass to Glass Clamp

For 5/16" to 1/2" (8 to 12 mm) Glass

Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures

Solid Brass

A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look

Glass Fabrication Required to Accommodate Clamps

Use Monolithic Tempered Glass

Square 135 Degree Glass-to-Glass Clamps have sharp corners. The glass can be mitered or flat edged. They are designed to join two panels at 135 degrees. These Clamps have many uses, and are typically utilized in the fabrication of custom showcase displays, trophy cases, partitions, and 'all-glass' enclosures. Available in a variety of popular finishes and styles to match designer hardware. Made of solid brass, these Clamps are engineered to remain beautiful for years with proper care and cleaning. Drawings and templates are available.

Each Leg Size: 2-1/2" (64 mm) Wide x 2" (51 mm) High

SPECIFICATIONS:

Materials: Solid Brass

Glass Fabrication Required:  Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom

Includes Gaskets

C.R. Laurence CRL SGC135 Series

FHC-USA CSU135 Series
