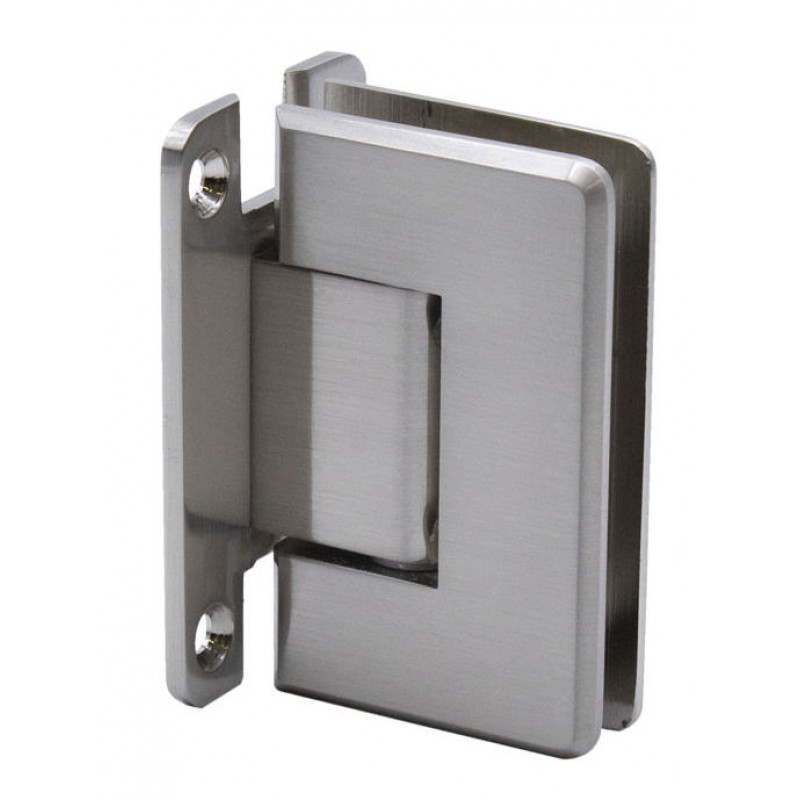

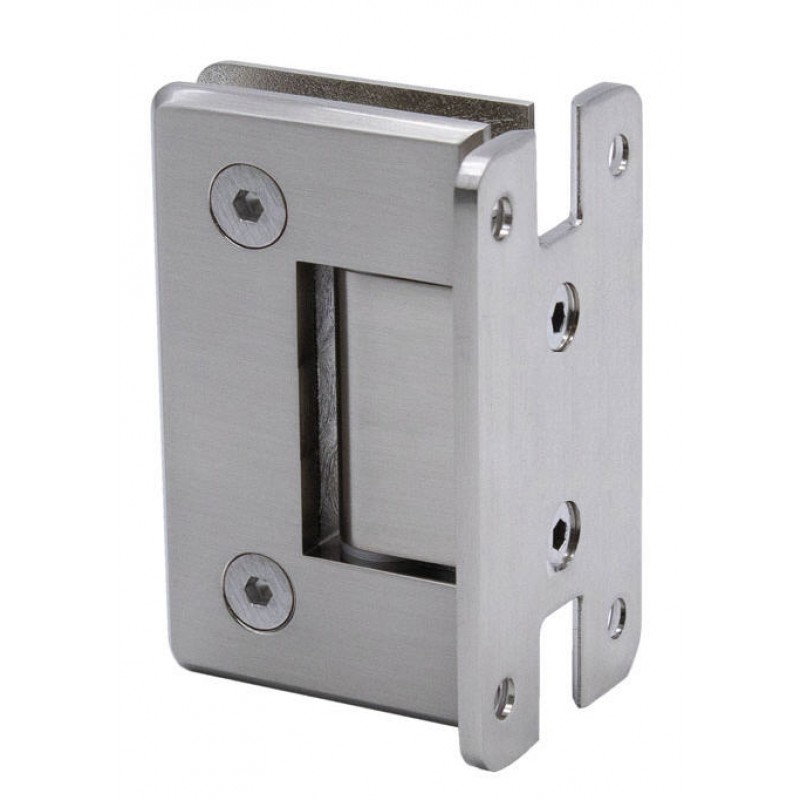

R037BN Brushed Nickel Rounded Wall Mounted Hinge - Split Back Plate - Pinnacle 037 P1N037BN Series

Colors Available:

Brushed Nickel

Chrome

Matte Black

(other colors available by quote)

Our BB Hardware R037BN BBAHI Paris Brushed Nickel Beveled Wall Mounted Split Back Plate Hinges are similar to our popular Geneva Series Hinge, but with one design change: BB Hardware (Pinnacle Style) has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.

Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the BB Hardware Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for BB Hardware hinges may not match those of other brands.

  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • Three Year Warranty
  • Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
  • Use Monolithic Tempered Glass
  • Height:    3-1/2" (89 mm)
  • Width:    2-3/16" (56 mm)

STANDARD REVERSIBLE PIVOT PIN: Each BB Hardware (Pinnacle Style) Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass

Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.

Construction: Solid Brass

Hinge Swings: 90 degree in and 90 degree out

Closing Type: Self-Centering when within 15 degree of closed position

Cut-Out Required

Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Custom finishes are available on request.

CRL Pinnacle P1N037BN Series

FHC Preston PRESF1BN Series
