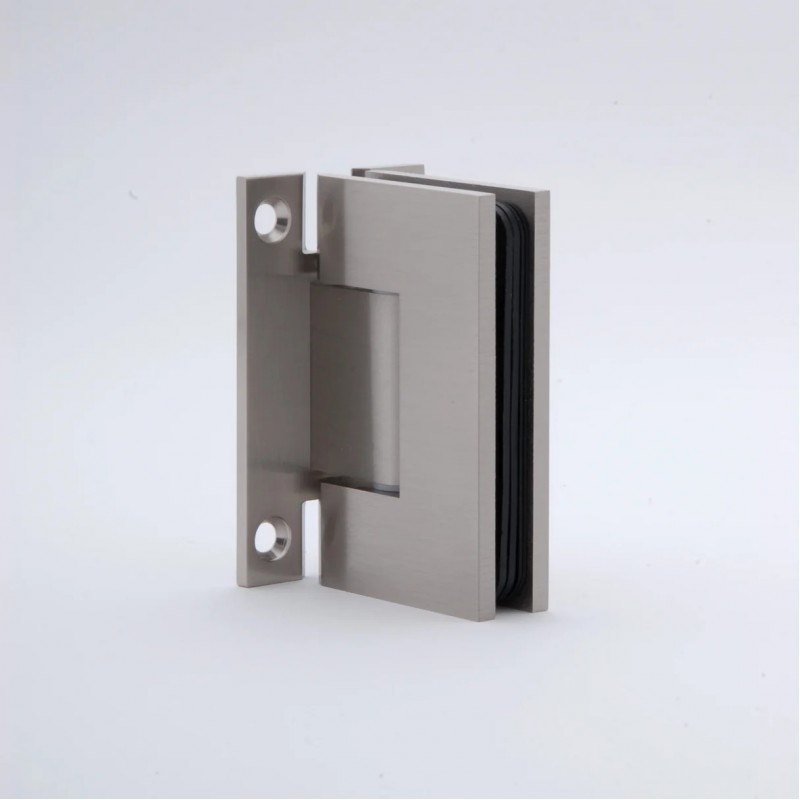

The BBAHI Aria Vetri Windsor 037 Series Wall Mount H Plate Hinge is made of solid brass for maximum support and is suitable for glass panels of thickness 5/16” to 1/2." The H plate allows the glass to be 1/16" from the wall to minimize water leakage. The glass can swing 90 degrees inwards and 90 degrees outwards. Two hinges can hold up to 80 lbs and three hinges 120 lbs The hinge is available in a variety of six styles, including three different Glass-to-Glass, Wall Mount and adjustable types, providing flexibility with design.

Prop 65

This product may contain chemicals known to the State of California to cause cancer or reproductive harm. Visit P65Warnings.ca.gov for more information.

• Regular Duty Hinge
• Material: Solid Brass
• Glass Thickness: 5/16" to 1/2"
• Self- Centering: Yes
• Maximum Door Width: 28" with 2 hinges
• Maximum Door Width:32" with 3 hinges
• Maximum Weight for 2 Hinges: 80 lbs.
• Maximum Weight for 3 Hinges: 120 lbs
• Includes: Gaskets, Screws, and Glass Fabrication Dimensions
• Commonly Use: Residential, Hotels, Motels, Apartments, Restaurants
• Cut Out Required
